The hasMany relation

With the hasMany relation a record from a parent table can be linked to one or more record of a child table. No changes in the parent table are required. The key(s) to link a parent record to the child record(s) are stored in the child table.

In the library example used in this wiki, the parent will be the book table, the child table is a review table where a book may have several reviews. Each review is stored in a different record and is linked via the record id of the book (stored in the review records) to a book.

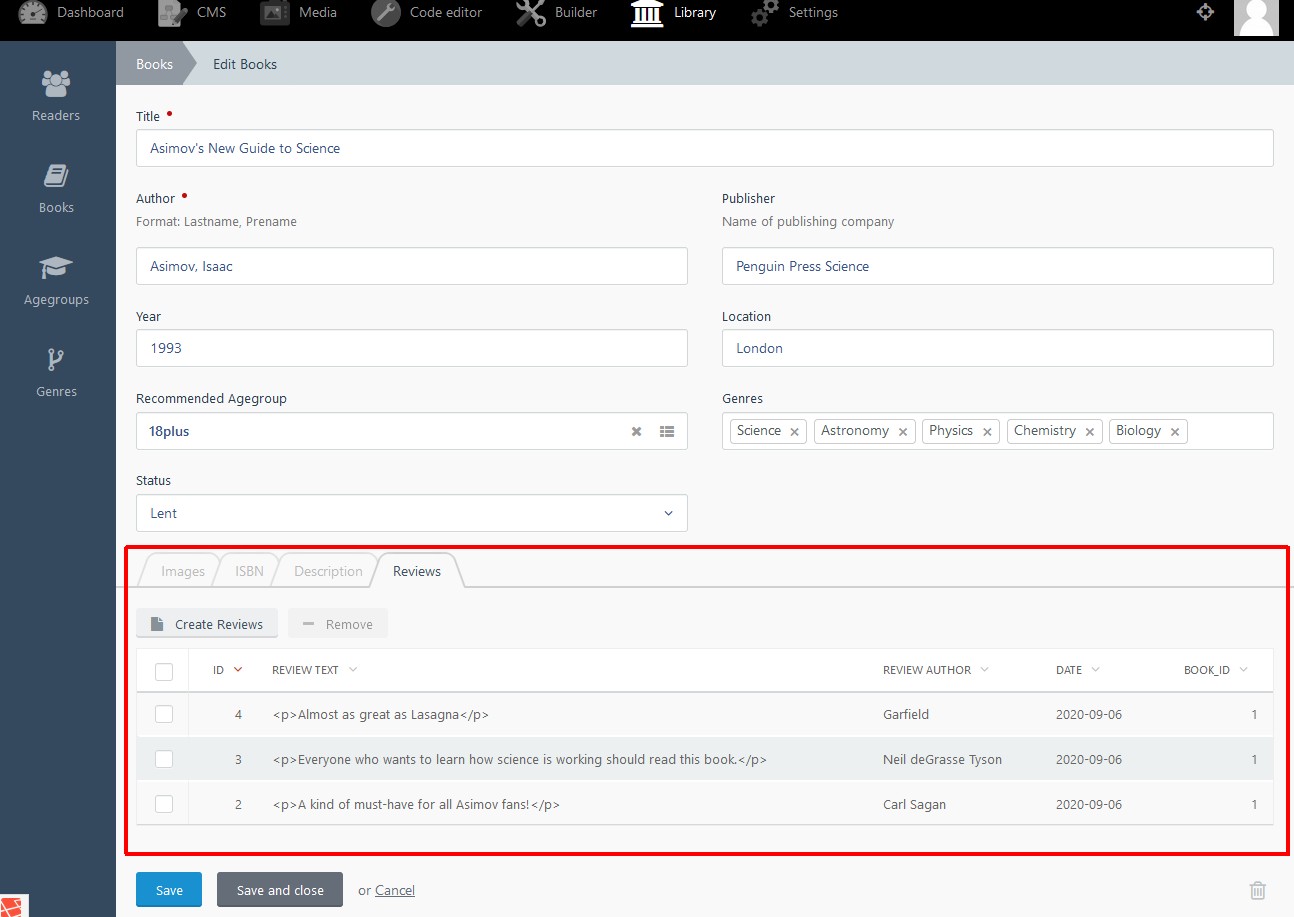

This is the parent form book embedding the related child list reviews showing all reviews for the displayed book:

Additional reviews can be crated with the button Create Reviews. By clicking on a row in the reviews table, an existing review can be updated directly.

Prerequisites are

• an installed builder plugin
• any source code editor or e.g. the Developer Tools plugin with built-in Code editor like to be seen on the screenshoots

Required skills

• how to work with builder
• how to create a plugin with builder
• how to create tables and forms with builder

Preparations

• a parent table to embed a relation to a child table
• a child table for the additional field(s) to embed into the parent table

• In the library example the parent table is books (plural).
• According to this, the parent model is called book (singular).
• The controller for the parent is called books (plural) like the table.
• The related child table shall be named reviews and
• the respective model is named review.
• The controller for the child is named reviews.


For a hasMany relation the child table requires a field named by the parent model trailed by '_id'. So in this library example where reviews will be added to books, the required field in the reviews table has to be called 'book_id'. In this field the id of the record of the parent table will be stored. This field has to be of the same type as the parent id field (unsually integer for IDs).
The table definitions for the hasMany relation looks pretty much the same like the hasOne definition. The difference is, that the has Many child table can hold more than one record with the same key to the parent record.

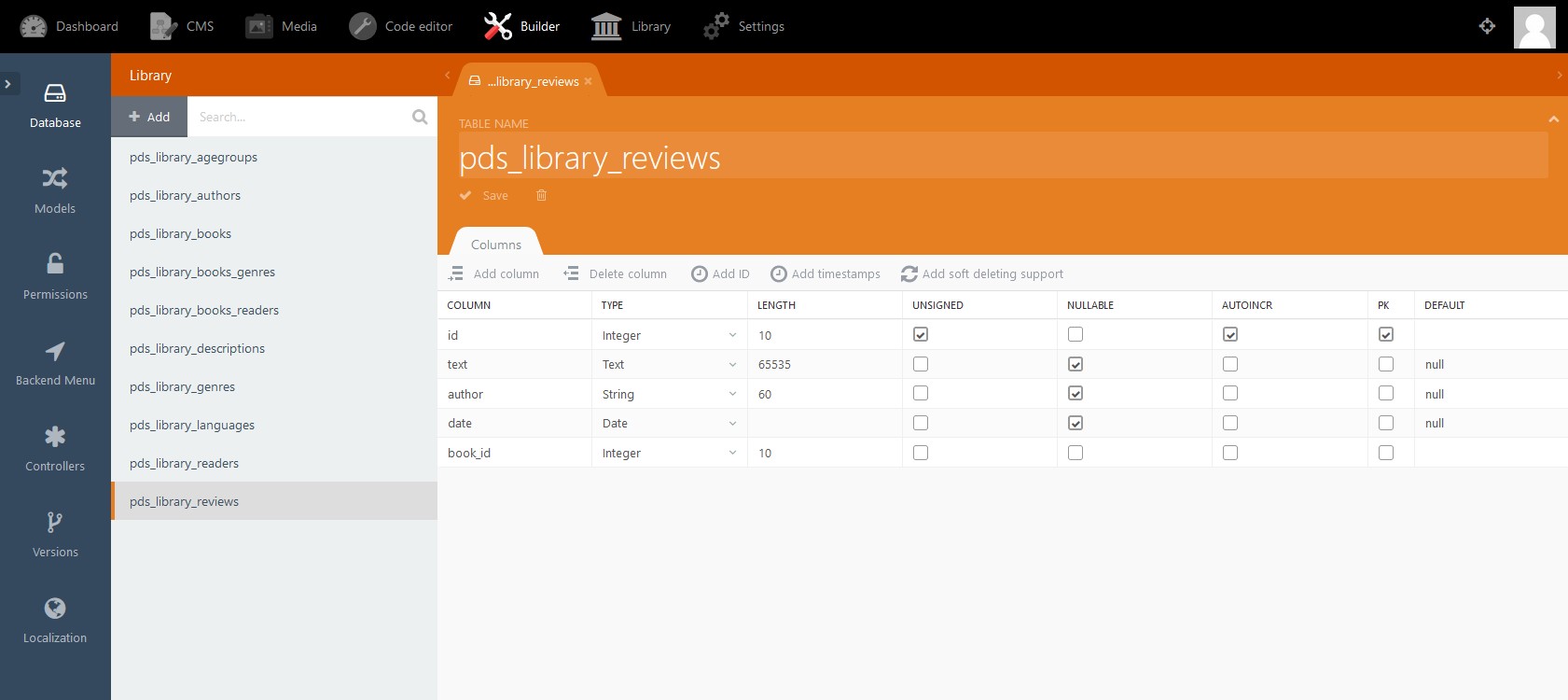

Here is what the libraray example reviews table looks like. Notice the last line where the field book_id is already defined:

Next a child table (reviews in the example) and a model (called Review) has to be created…

This is the form for the reviews:

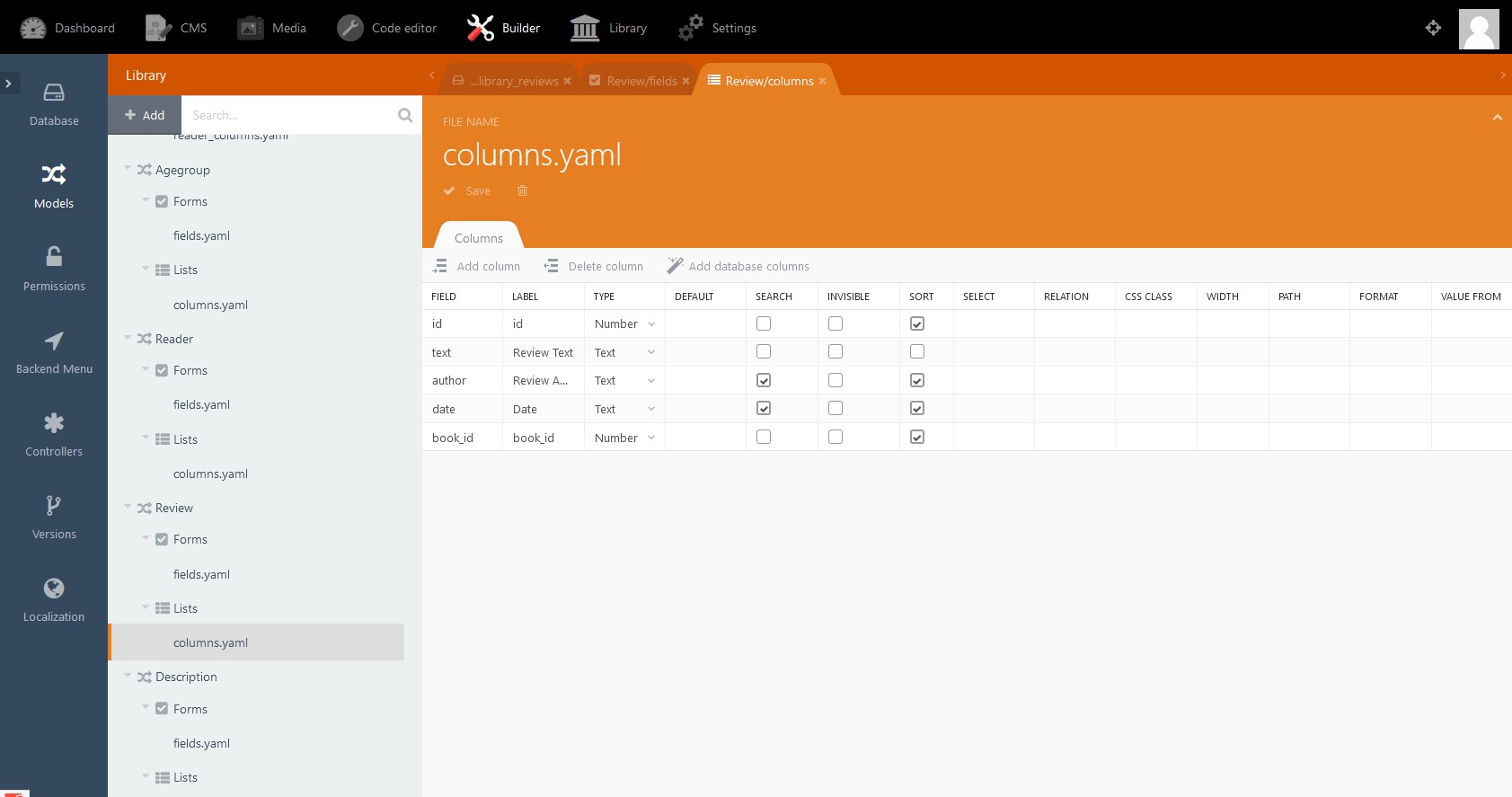

This is the list view for the reviews:

As for all relations the controller of the parent table has to be extendend by a few lines to add the relation behaviour. This simlpy is to tell OctoberCMS and the parent table how deal with relations.
In case this step has been done already for another relation, skip it because this is required only once!

Here is the complete code to copy, the highlighted rows are the lines probably to add, if the controller was already created. Please remember Pds\Library is the namespace of this exampe that has to be adapted to your needs!

<?php namespace Pds\Library\Controllers;

use Backend\Classes\Controller;
use BackendMenu;

class Books extends Controller
{
    public $implement = ['Backend\Behaviors\ListController',
                         'Backend\Behaviors\FormController',
                         'Backend\Behaviors\RelationController']; // this line adds the relation behaviour

    public $listConfig = 'config_list.yaml';
    public $formConfig = 'config_form.yaml';

    //add configuration of relation for Books
    // this file has to be created then manually inside the
    // [namespace]\controllers\[controllername] folder
    public $relationConfig = 'config_relation.yaml';

    public function __construct()
    {
        parent::__construct();
        BackendMenu::setContext('Pds.Library', 'library-main-menu-item');
    }
}

To make the parent model able to work with the relation, the type of the relation, the name of the relation and the child model have to be defined in the parent model.

The required file is placed in plugins /models/ directory. In case of our example the full path is 'pds/library/models/book.php'.
It's only a few lines to add:

<?php
   ...

   public $hasMany = [
        'reviews' => ['Pds\Library\Models\Review']
   ];
   ...

In line 4 the public variable '$hasMany' is the type of relation, to let OctoberCMS know which relations to take care for in this model.
In line 5 'reviews' is the name of the relation, which can be used similar to a table field name. The path assigned to the name of the relation is the path to the model of the child table.
By default the key field to look for the records with related IDs will be created by the name of the model trailed by '_id'. In our example this would be 'book_id'.

Remember each definition for a relation is like a table field. A definition can hold several definitions for different relations. Like so:

<?php
    ...

    // multiple definitions for one type of relation
    public $hasMany = [
        'reviews' => ['Pds\Library\Models\Review'],
        'otherrelation' => ['Pds\Library\Models\Otherrelation'],
        'foo' => ['Pds\Library\Models\Foo']

    ...
];

And here is the code embedded into the model:

If the name of the key field within the child table (the reviews table in our case) cannot be 'book_id' for what reason ever, we have to define the correct name of the id field. E.g. like this:

<?php
    ...

    public $hasMany = [
        'reviews' => ['Pds\Library\Models\Review',
                          'key' => 'alternative_id']
    ];

    ...

In the controller file of the parent table (pds/library/controllers/Books.php, see step 3) we have announced a relation configuration file. This announcement was:

<?php

    ...
    public $relationConfig = 'config_relation.yaml';
    ...


Now we have to create (if it is not created yet) and edit this controller-configuration-for-books-file as:

  pds/library/controllers/books/config_relation.yaml

This file is the central configuration for all relations of the books table. Handle with care!

The (additional) code required for the hasMany relation to the reviews table has to be:

...

reviews:
    label: Reviews
    view:
        list: $/pds/library/models/review/columns.yaml
        toolbarButtons: create|delete
    manage:
        form: $/pds/library/models/review/fields.yaml

...

• The root entry reviews is the name we will refer to from the book model (see code: public $hasMany = ['review' ⇒ ['Pds\Library\Models\…' ) .
• The item label: holds the text for a label for the field 'review'.

• The item toolbarButtons with 'create|delete' buttons will add the ability to create a new review directly from the book view or to delete existing ones. The 'update' button is not required, because an update/edit form will be opened by ckicking on a row in the review list.
• The manage sections defines how things are displayed when we are searching or editing an entry

Please note: For the item toolbarButtons there are some options more available, not used in this example:

• link will give the option to add a already existing but not yet related (linked) entry of the child table to a parent record
• unlink will cut the relation from the parent table to the child table and orphan the child record

Both options are useful in many cases, but not exactly for this example.

This is the screenshot for the example above - notice that a definition is already set (see the hasOne example):

The next file to create in the controller subdirectory of the parent model is a partial htm file to render the child model.
This file has to be named by convention _field_[reference variable].htm where the [reference variable] has to be the name as set in the config_relation.yaml file root for this reference.

in our library example the file (includong the path) will be pds/library/controllers/books/_field_review.htm
The content of this file has (at least) to be in our example:

    <?= $this->relationRender('review') ?>

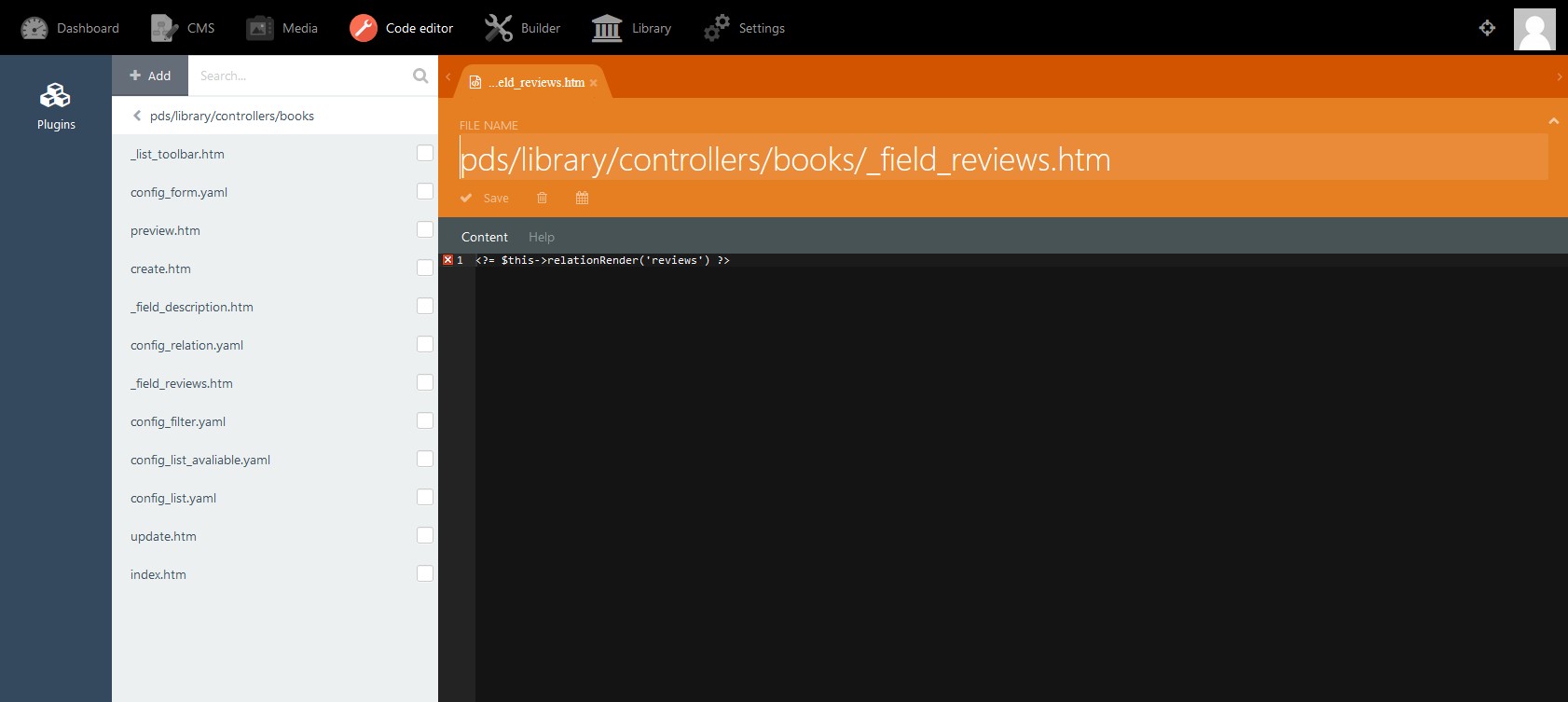

See this screenshot too:

Finally we are now ready to integrate the relation into our parent model. In our example the parent model is the book form view defined in the pds/library/models/book/field.yaml file.

So we return to Builder > Models > Book > Forms > field.yaml an add a widget Partial displaying and managing the created relation.
The field name we have to refer to is review as defined before. The partial to display is the one defined in step 6: $/pds/library/controllers/books/_field_reviews.htm
Notice the '$' in front of the path. This tells october to find subpath and file in the plugin folder.

Now the form is ready to create, show, edit, delete, link and unlink a record from the child table within/to a record of the parent table.

---
